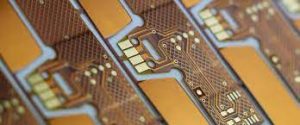

Flex PCB Fabrication
As the electronics industry grows, so do the needs for flexible circuits. These circuits are a great choice for many applications due to their flexibility, durability and thermal stability. They are also able to accommodate the curved shapes and tight bends of modern electronics devices. Flexible circuits are normally used in computer equipment, automotive electronic components and consumer electronics.
A flex circuit is made from a rigid or semi-rigid material and has an inner layer of insulating resin that encapsulates the copper foil. The outermost layer of the flex circuit is a non-conductive material such as polyimide or Kapton that protects the inside layers. The flex pcb fabrication can be single-sided or double-sided and it may contain plated through holes (PTH).
The base material for rigid PCBs is typically woven fiberglass that has been impregnated with epoxy resin to create the stiffness. The epoxy also makes the board waterproof and resistant to corrosive chemicals. Rigid-flex boards are made of a similar material but they also include a layer of flexible dielectric film that gives the board its flexibility. This layer can be polyester, polyimide or a fluoropolymer such as PTFE.
Can a Flex PCB Fabrication Be Recycled?
When designing a flex circuit, it is important to consider the operating environment and the amount of bending that will occur. The conductor pattern should also be analyzed to ensure that the bend radius is as large as possible and that the conductors are not crossing each other too often. Pad fillets are also important for improving etch yield and material strength. They can be added to areas with PTH to improve the plated hole edge and reduce stress on the conductors during bending.
Other design considerations are the thickness of the flex and the number of layers. The thickness should be less than the bending radius of the circuit to avoid failure during flexing. The number of layers should also be carefully considered; more layers will increase the cost and require a greater amount of time to etch. The layer count should also take into account the presence of surface mount access openings and any reference plane layers and shielding.
Once the design of a flex circuit has been completed, it is ready to be sent to a PCB layout provider. At this point, the layout provider can work with the EE and mechanical engineer to ensure that the design will fit into the device. During this phase, the layout provider will determine the placement of components and drill holes. They will also add labels, identifiers and reference designators to the layout.
The flex PCB fabrication process can be performed using the same tools and processes as a standard rigid PCB. However, a few additional steps are required to achieve high quality results. For example, a flexible circuit requires a different process than a rigid PCB, which uses thermally cured epoxy to bond the layers of the board together. The thermally cured epoxy will not be able to bond to the polyimide layer of the flex, so a separate adhesive must be used. This adhesive can be either a hot-melt or cold-melt glue, depending on the application. The gluing method used will also impact the performance of the circuit.
